Catalyst 9130AXE Wireless Access Points Overview

The Cisco Catalyst 9130AX Series Access Points are the next generation of enterprise-grade wireless solutions, designed for resilience, security, and intelligence. The C9130AXE model features external antennas and supports Wi-Fi 6 (802.11ax), with 4x4:4 MIMO for exceptional coverage and high-speed performance. This access point is Wi-Fi 6 certified, providing dual-band support on both 2.4-GHz and 5-GHz frequencies, and is equipped with up to four Wi-Fi radios, including a 5GHz flexible radio (single 8x8 or dual 4x4) and 2.4GHz (4x4) for optimized performance. With OFDMA and MU-MIMO technologies, the C9130AXE ensures efficient handling of multiple devices simultaneously. It also supports multigigabit speeds, ideal for high-density environments. The inclusion of Cisco RF ASIC enhances radio performance, ensuring reliable and consistent connectivity. As part of its future-proof capabilities, the C9130AXE is IoT-ready, supporting Bluetooth Low Energy (BLE) and other 802.15.4 protocols like Zigbee, which will be further supported in future software releases. For businesses seeking top-tier wireless solutions, Shop Cisco Wireless APs such as the Cisco Catalyst 9130AX Access Points to future-proof your network with next-generation technology.

Supported Controller and Softwares

Supported wireless LAN controllers and Software	Recommended Model
Cisco 3500 Series Wireless Controllers	AIR-CT3504
Cisco 5520 Series Wireless Controllers	AIR-CT5520
Cisco 8540 Series Wireless Controllers	AIR-CT8540 AIR-CT8540-1K
Cisco 9800 series Wireless Controllers	C9800-40 C9800-80
Cisco Virtual Wireless Controller	/
Cisco Unified Wireless Network Software Release 8.9 or later	/
Cisco IOS XE Software Release 16.11 or later	/

Compare with similar items

SKU	Description
C9130AXE-A	Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, A Domain
C9130AXE-B	Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain
C9130AXE-D	Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, D Domain
C9130AXE-E	Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, E Domain
C9130AXE-H	Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, H Domain
C9130AXE-K	Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, K Domain
C9130AXE-Q	Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, Q Domain
C9130AXE-R	Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, R Domain
C9130AXE-S	Cisco Catalyst 9130AX Series Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO, S Domain

Specifications

C9130AXE-X Specification
Software	Catalyst 9130AXE • Cisco Unified Wireless Network Software Release 8.10MR1 or later • Cisco IOS ® XE Software Release 17.1.1 s or later
Supported wireless LAN controllers	• Cisco Catalyst 9800 Series Wireless Controllers • Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller
802.11n version 2.0 (and related) capabilities	• 4x4 MIMO with four spatial streams • Maximal Ratio Combining (MRC) • 802.11n and 802.11a/g • 20- and 40-MHz channels • PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) • 802.11 Dynamic Frequency Selection (DFS) • Cyclic Shift Diversity (CSD) support
802.11ac	• 8x8 downlink MU-MIMO with eight spatial streams • MRC• 802.11ac beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS• CSD support• WPA3 support
802.11ax	• 8x8 uplink/downlink MU-MIMO with eight spatial streams • Uplink/downlink OFDMA • TWT• BSS coloring• MRC• 802.11ax beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS• CSD support• WPA3 support
Integrated antenna	• 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth • 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth

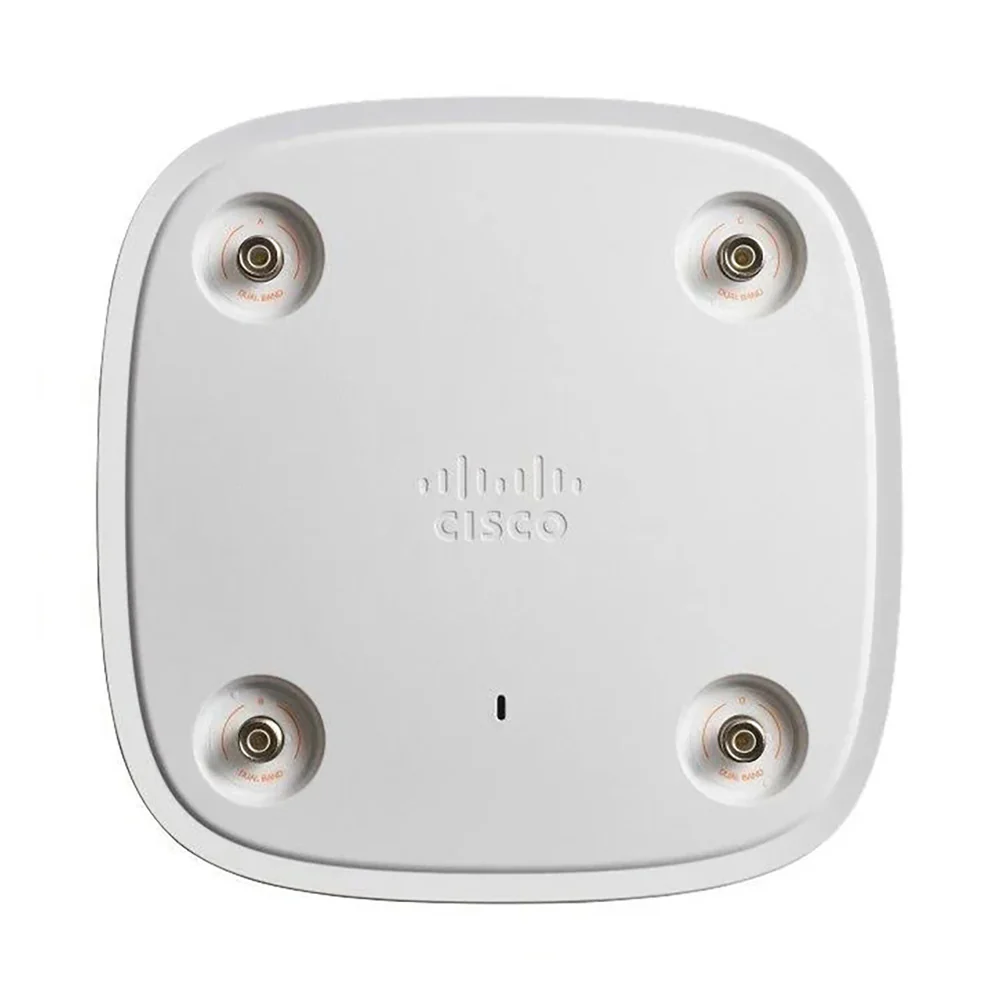

External antenna with Smart antenna connector	• The Cisco Catalyst 9130AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios • Supports Self-Identifiable Antennas (SIA) on the Smart antenna connector • Smart antenna connector is a compact multi-RF connector with 8-DART interface • Requires the AIR-CAB002-D8-R= 2-fppt smart antenna connector when used with antennas with a RP-TNC connector • Requires the AIR-CAB003-D8-N= 3 ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna
Interfaces	• 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz • Management console port (RJ-45) • USB 2.0 at 4.5W (enabled via future software)
Indicators	• Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions (W x L x H)	• Access point (without mounting brackets): - C9130AXE: 9.17 x 9.17 x 1.58 in. (23.3 x 23.3 x 4.0 cm)
Environmental	Cisco Catalyst 9130AXE • Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) • Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m) • Operating temperature: -4° to 122°F (-20° to 50°C) • Operating humidity: 10% to 90% (noncondensing) • Operating altitude test: 40˚C, 9843 ft.(3000 m)
System memory	• 2048 MB DRAM • 1024 MB flash
Warranty	Limited lifetime hardware warranty
Available transmit power settings	2.4 GHz • 23 dBm (200 mW)• 20 dBm (100 mW) • 17 dBm (50 mW)• 14 dBm (25 mW) • 11 dBm (12.5 mW)• 8 dBm (6.25 mW) • 5 dBm (3.13 mW)• 2 dBm (1.56 mW) • -1 dBm (0.79 mW)• -4 dBm(0.39 mW) 5 GHz • 26 dBm (400 mW)• 23 dBm (200 mW) • 20 dBm (100 mW)• 17 dBm (50 mW) • 14 dBm (25 mW)• 11 dBm (12.5 mW) • 8 dBm (6.25 mW)• 5 dBm (3.13 mW) • 2 dBm (1.56 mW)• -1 dBm (0.79 mW)
Maximum number of nonoverlapping channels	2.4 GHz • 802.11b/g:- 20 MHz: 3 • 802.11n:- 20 MHz: 3 • 802.11ax:- 20 MHz: 35 GHz • 802.11a:- 20 MHz: 26 FCC, 16 EU • 802.11n:- 20 MHz: 26 FCC, 16 EU- 40 MHz: 12 FCC, 7 EU • 802.11ac/ax:- 20 MHz: 26 FCC, 16 EU- 40 MHz: 12 FCC, 7 EU - 80 MHz: 5 FCC, 3 EU- 160 MHz 2 FCC, 1 EU Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Compliance standards	• Safety: - IEC 60950-1- EN 60950-1- UL 60950-1- CAN/CSA-C22.2 No. 60950-1- AS/NZS60950.1- UL 2043- Class III equipment • Emissions:- CISPR 32 (rev. 2015)- EN 55032 (rev. 2012/AC:2013) - EN 55032 (rev. 2015) - EN61000-3-2 (rev. 2014) - EN61000-3-3 (rev. 2013) - KN61000-3-2 - KN61000-3-3 - AS/NZS CISPR 32 Class B (rev. 2015) - 47 CFR FCC Part 15B - ICES-003 (rev. 2016 Issue 6, Class B) - VCCI-CISPR 32- CNS (rev. 13438) - KN-32- QCVN 118:2018/BTTTT • Immunity:- CISPR 24 (rev. 2010)- EN 55024 + AMD 1(rev. 2010) - EN 55035: 2017- KN35 • Emissions and immunity: - EN 301 489-1 (v2.1.1 2017-02) - EN 301 489-17 (v3.1.1 2017-02) - QCVN (18:2014) - QCVN 112:2017/BTTTT - KN 489-1- KN 489-17 - EN 60601-1-2:2015 - EN 61000-6-1: 2007 • Radio: - EN 300 328 (v2.1.1) - EN 301 893 (v2.1.1) - AS/NZS 4268 (rev. 2017) - 47 CFR FCC Part 15C, 15.247, 15.407 - RSP-100 - RSS-GEN - RSS-247 - China regulations SRRC - LP0002 (rev 2018.1.10) - Japan Std. 33a, Std. 66, and Std. 71 • RF safety: - EN 50385 (rev. Aug 2002) - ARPANSA - AS/NZS 2772 (rev. 2016) - EN 62209-1 (rev. 2016) - EN 62209-2 (rev. 2010) - 47 CFR Part 1.1310 and 2.1091- RSS-102 • IEEE standards: - IEEE 802.3 - IEEE 802.3ab - IEEE 802.3af/at - IEEE 802.11a/b/g/n/ac/ax - IEEE 802.11h, 802.11d • Security: - 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA3 - 802.1X- Advanced Encryption Standard (AES) • Extensible Authentication Protocol (EAP) types: - EAP-Transport Layer Security (TLS) - EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2 - Protected EAP (PEAP) v0 or EAP-MSCHAP v2 - EAP-Flexible Authentication via Secure Tunneling (EAP-FAST) - PEAP v1 or EAP-Generic Token Card (GTC) - EAP-Subscriber Identity Module (SIM)
