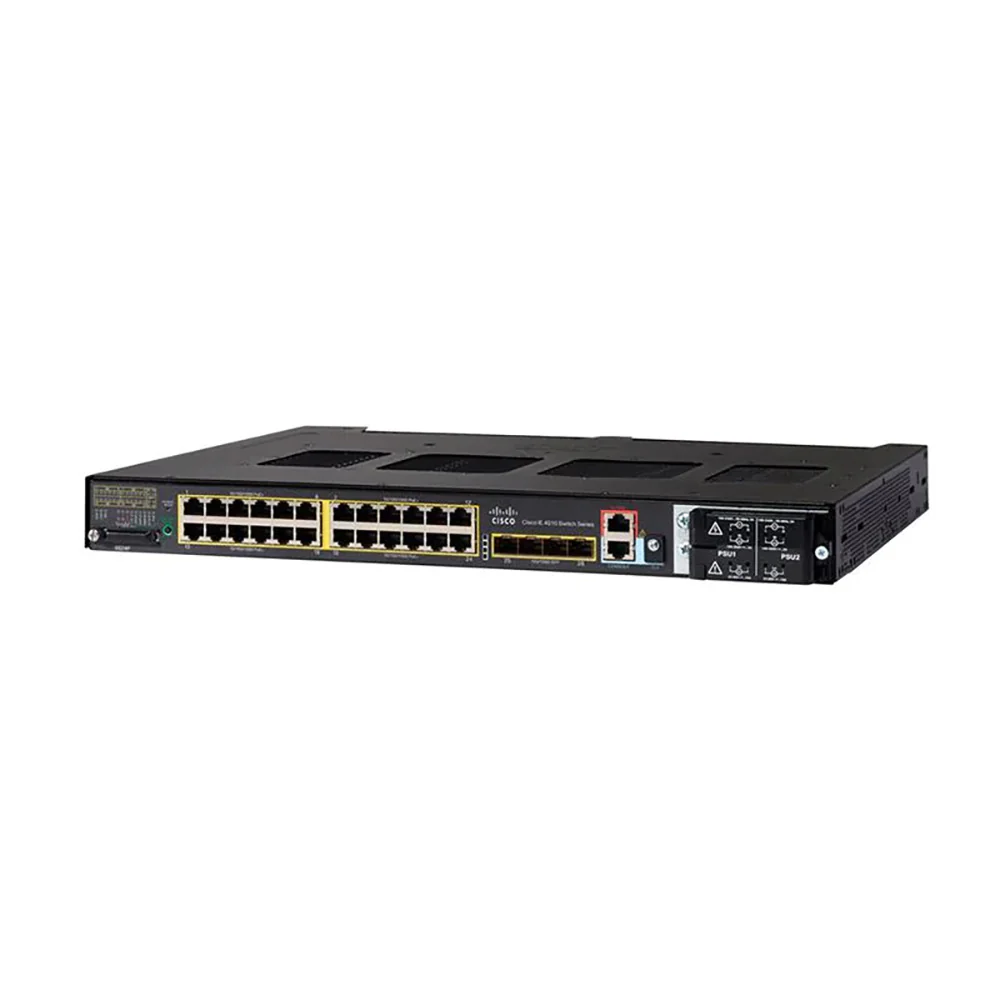

Cisco IE4010-4S24P PoE+ Industrial Ethernet Switch

The Cisco Industrial Ethernet (IE) 4010-4S24P rack-mount switch delivers ruggedized, high-density Power-over-Ethernet (PoE/PoE+) access for U.S. industrial and smart-city networks—from Chicago transit control centers to Texas oil-and-gas facilities.

This 1 RU, IP30-rated switch provides 24 auto-sensing 10/100/1000 PoE+ RJ-45 ports plus 4 Gigabit SFP uplinks, backed by Cisco IOS® LAN Base software with comprehensive security and high-availability ring protocols.

Built for harsh environments, it operates reliably from –40 °C to +75 °C, features fanless, convection-cooled design, and integrates with Cisco Catalyst Center or DNA Center for centralized management.

Overview

Highlights

Ports & Uplinks
24 × 10/100/1000 PoE/PoE+ RJ-45 ports + 4 × 1 Gbps SFP uplink ports for flexible copper and fiber connectivity.
Flexible PoE Budget
Supports up to 385 W of PoE power budget with dual 250 W power supplies, enabling a mix of HD IP cameras, Wi-Fi APs, and sensors.
Rugged Industrial Design
IP30-rated metal housing, fanless convection cooling, hardened for vibration, shock, surge, and electrical noise, and extended –40 °C to +75 °C operating range.
High-Availability Ring Protocols
Cisco Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), Media Redundancy Protocol (MRP), High-Availability Seamless Redundancy (HSR), plus Flexlink and dying-gasp support.
Industrial Protocol & Timing Support
Native EtherNet/IP (CIP), Profinet, and IEEE 1588v2 Precision Time Protocol (default and power profiles) for synchronized automation and ITS applications.
Enterprise-Grade Security
SSH, SNMPv3, RADIUS/TACACS+, 802.1X authentication, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, BPDU Guard, and FIPS 140-2 secure boot.
Flexible Management
GUI-based web UI and Express Setup for zero-touch provisioning, CLI, SNMP, RMON, mini-USB and RJ-45 console, plus integration with Cisco Catalyst Center and Cisco DNA Center.

Recommended supported products

Model	Description
L-IE4000-RTU	Electronic IP SERVICES License for IE4000 Switches
C1F1PIE4K5K1K9	Cisco ONE Foundation Perpetual - IE 4000/5000
C1A1PIE40001K9	Cisco ONE Advanced Perpetual - IE 4000
PWR-RGD-AC-DC-H	Hazloc grade power supply high voltage (88-300VDC/85-264VAC), 150W
PWR-RGD-AC-DC-250	Higher PoE, 250W PSU for IE4010/5000, 100-240VAC/100-250VDC
PWR-RGD-LOW-DC-H	IE4010/5000 Hazloc Pwr Supply Low DC 24-60V/10A
GLC-SX-MM-RGD	Cisco GLC-SX-MM-RGD 1000Mbps Multi-Mode Rugged SFP
GLC-BX40-U-I	1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1550-nm RX wavelength, single LC/PC connector
GLC-TE	1000BASE-T SFP transceiver module for Category 5 copper wire
GLC-ZX-SM	1000BASE-ZX SFP
GLC-BX-U	1000BASE-BX SFP, 1310NM
SFP-GE-L	1000BASE-LX/LH SFP (DOM)
GLC-ZX-SMD	Cisco GLC-ZX-SMD1000 BASE-ZX SFP transceiver module, SMF, 1550nm, DOM
GLC-SX-MMD	Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
GLC-FE-100EX	100BASE-EX SFP (40km)
GLC-FE-100BX-U	100BASE-BX10-U SFP

Comparison with Similar Models

Feature	IE-4010-4S24P	IE-4010-16S12P
Copper PoE Ports	24 × 10/100/1000 PoE/PoE+	12 × 10/100/1000 PoE/PoE+
Fiber Ports	4 × 1 Gbps SFP uplinks	16 × 1 Gbps SFP fiber ports
Max PoE Budget	Up to 385 W (dual 250 W supplies)	Up to 360 W (dual 250 W supplies)
Switching Capacity	28 Gbps line-rate	28 Gbps line-rate
Operating Temp.	–40 °C to +75 °C	–40 °C to +75 °C
Ideal Use Case	High-density PoE for IP cameras, APs, sensors in outdoor/harsh sites	Mixed PoE and fiber connectivity for SCADA and remote ITS sites

Specifications

Parameter	Specification
Model	IE-4010-4S24P
Feature Set	Cisco IOS LAN Base
Ports	24 × 10/100/1000 PoE/PoE+ RJ-45; 4 × 1 Gbps SFP uplink ports
Switching Capacity	28 Gbps non-blocking, line-rate switching
Forwarding Rate	41.67 Mpps (64-byte packets)
DRAM / Flash	1 GB DRAM; 128 MB onboard flash; 1 GB removable SD card
Console Ports	1 × RJ-45 serial; 1 × mini-USB
Hardware Alarm I/O	4 dry-contact inputs; 1 Form C alarm output relay
Industrial Protocols	EtherNet/IP (CIP), Profinet v2
Precision Timing	IEEE 1588v2 PTP (Power and Default profiles)
Layer 2 Features	VLANs (802.1Q), STP/RSTP/MSTP, EtherChannel, IGMP/MLD Snooping, DHCP Snooping, DAI, IP Source Guard, ACLs
High-Availability	REP, PRP, MRP, HSR, Flexlink, Dying Gasp
Security	SSH, SNMPv3, RADIUS/TACACS+, 802.1X, BPDU Guard, Port Security, FIPS 140-2 Secure Boot
Management	Web UI, Express Setup, CLI, SNMP v1/v2c/v3, RMON, Cisco Catalyst Center, Cisco DNA Center, Python SDK
Power Supplies	PWR-RGD-AC-DC-H (150 W), PWR-RGD-LOW-DC-H (150 W), PWR-RGD-AC-DC-250 (250 W)
PoE Power Budget	80 W (150 W PSU); 200 W (dual 150 W); 180 W (250 W); 285 W (250 W+150 W); 385 W (dual 250 W)
Power Consumption	Max 70 W (excl. PoE)
Dimensions (H×W×D)	1.75″ × 17.5″ × 14.0″ (4.45 × 44.5 × 35.6 cm) with 150 W PSU; 15.18″ depth with 250 W PSU
System Weight	12.1 lb (5.46 kg) without PSU; PSU weights 1.13–1.4 kg depending on model
Operating Temp. / Humidity	–40 °C to +75 °C; 0–100% condensing
Certifications	UL /cUL, CE, IEC 60950, ATEX Zone 2, Class I Division 2, RoHS, WEEE
